Mapping

Creating maps for automated driving

---

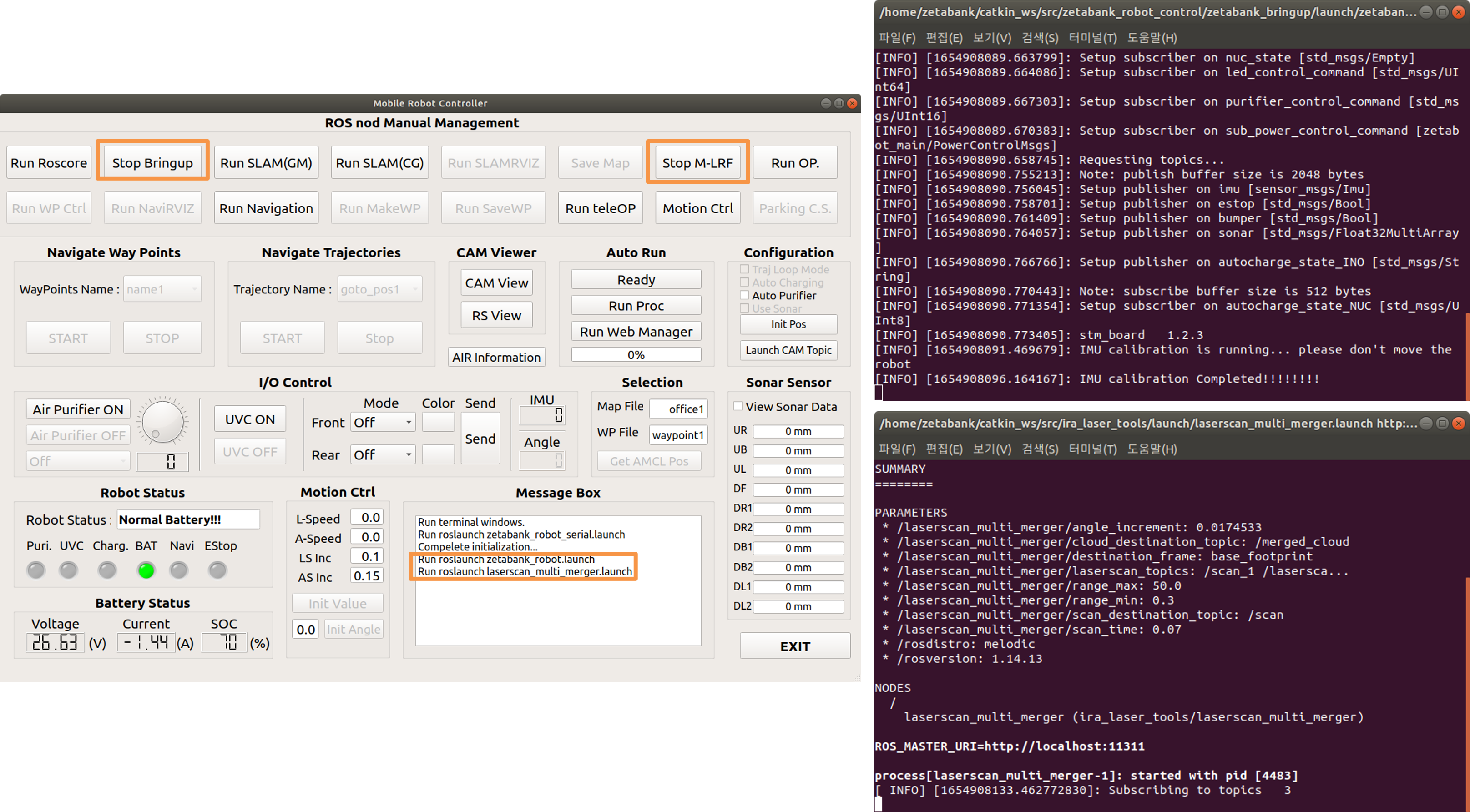

Run Bringup & M - LRF

---

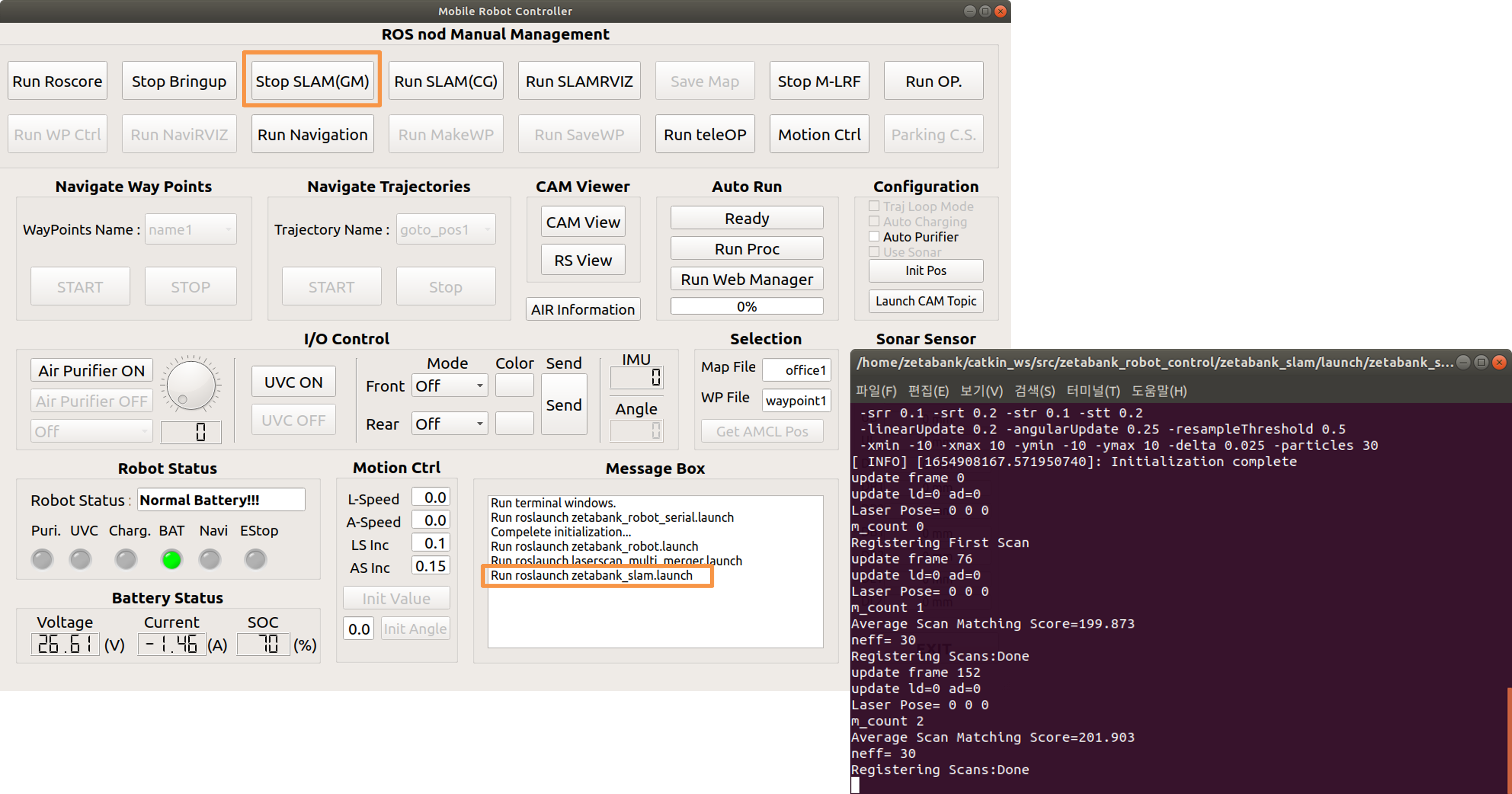

Run SLAM(GM)

---

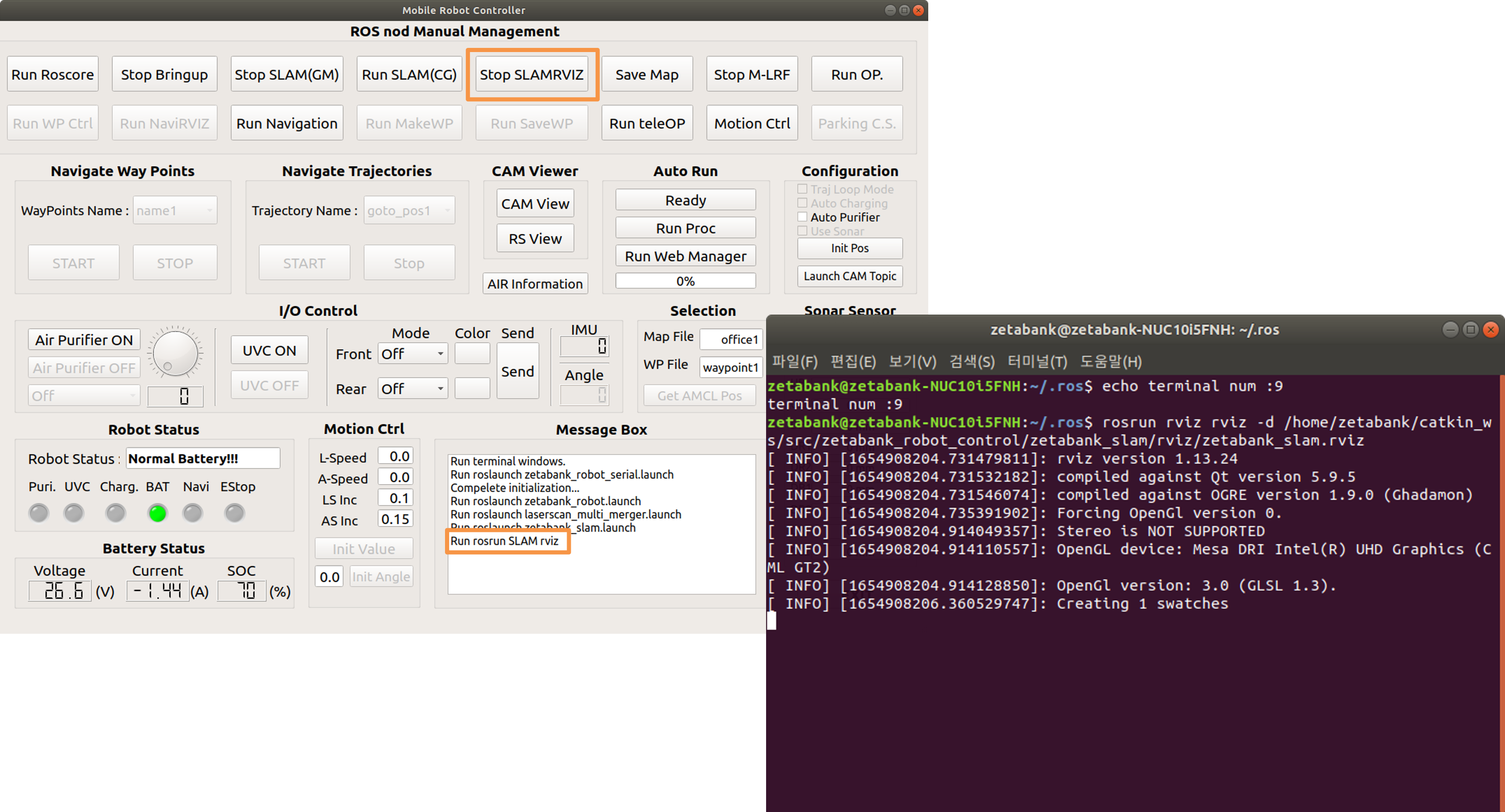

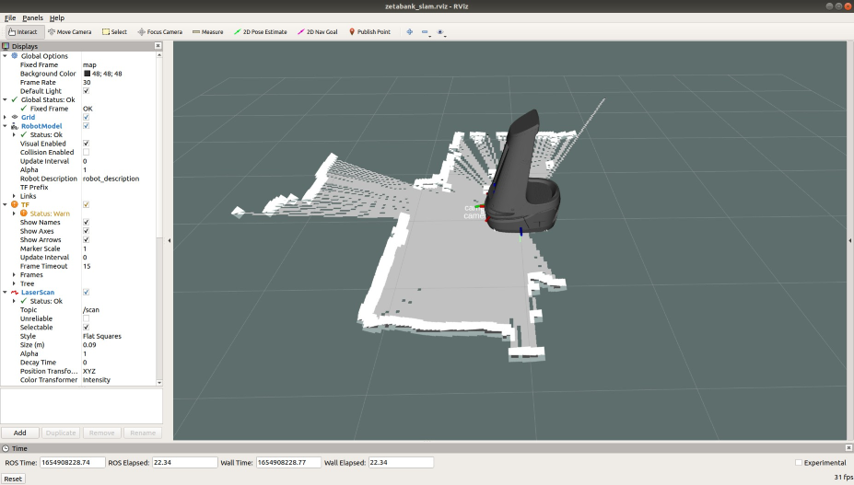

Run SLAMRVIZ

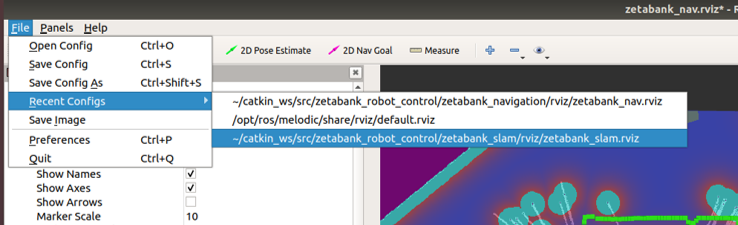

• After running SLAM RVIZ, follow the path as above.

---

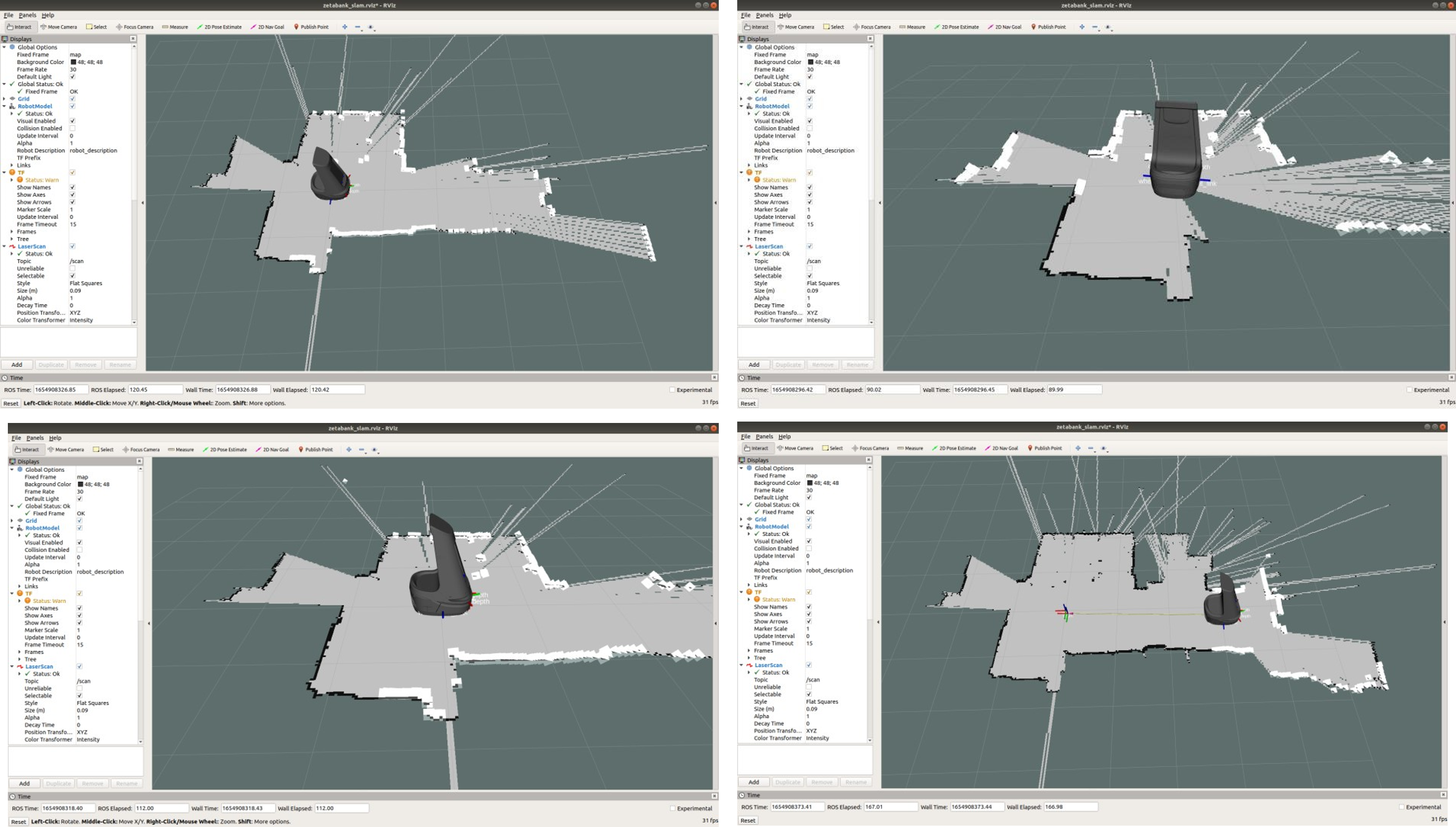

Draw Map

• Draw the map while driving the robot using Motion ctrl.

---

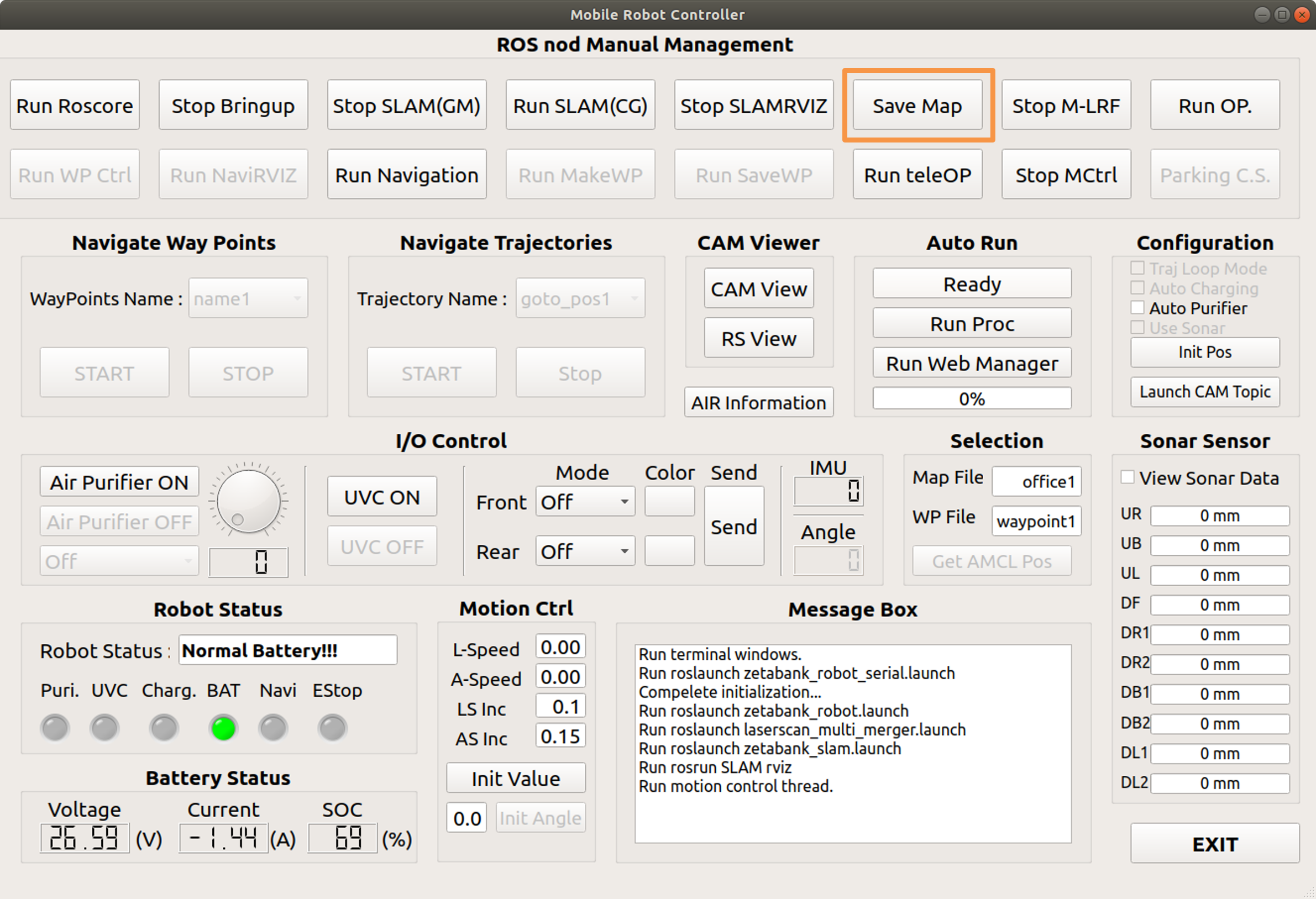

Save Map

• After drawing the map, click save map.

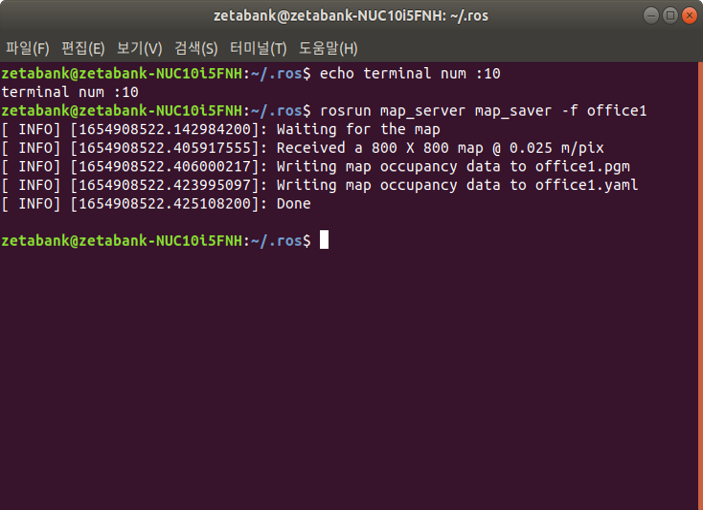

• The command is automatically entered into the terminal and the map is saved.

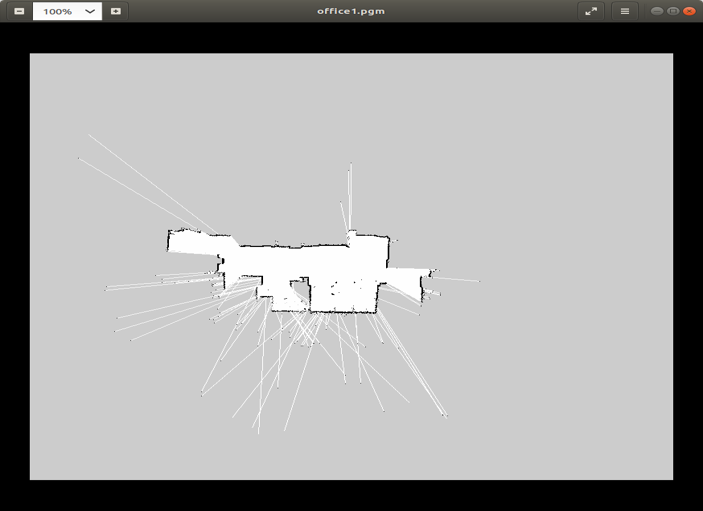

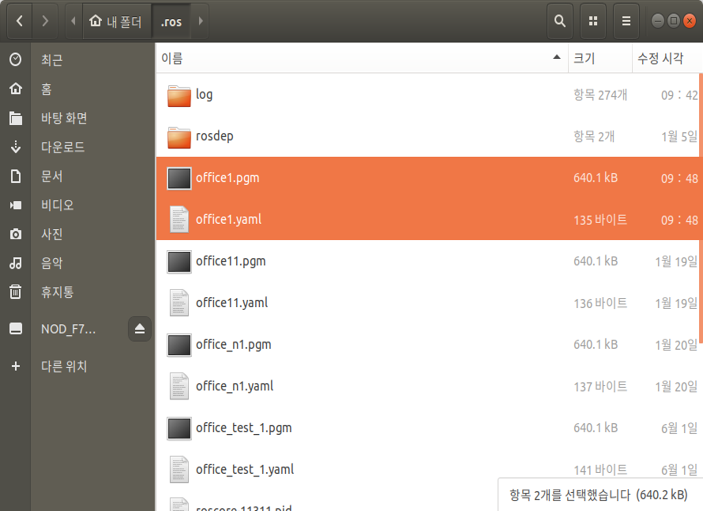

• pgm file showing the appearance of the map and a yaml file with the detailed data of the map are created.
