Mission

Project Name: 3-Stage Distance Detection System

- This mission is an team project
- Run the given code to see how RealSense detects the object.
- Tuning RealSense by checking and modifying the contents of the code.
- Measure distance using RealSense’s distance detection function.

  • 01_09_distance_measurement_metric.ipynb

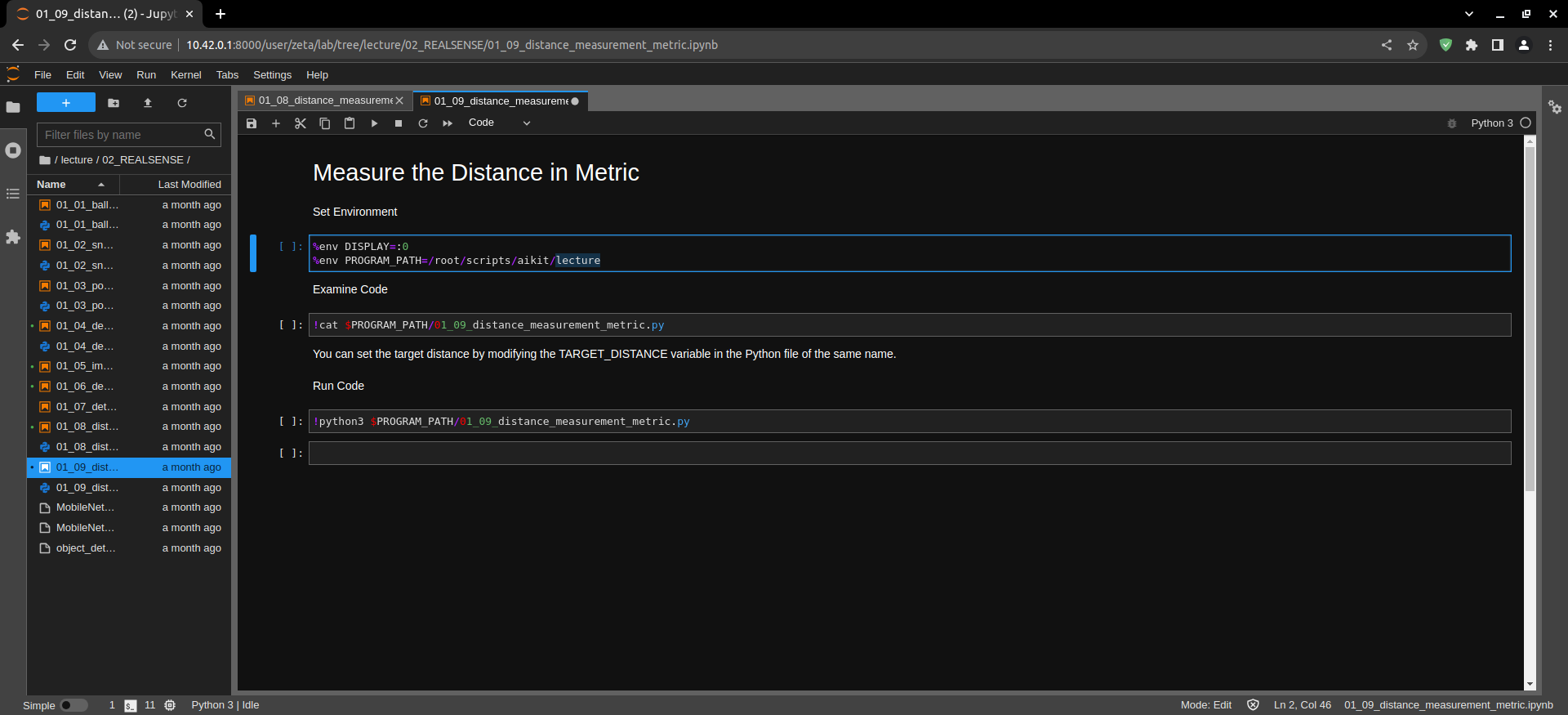

  • Running the cell code.
    Ctrl + Enter

How to Excute the Python File

  • Set environment variables before executing a Python file.

%env DISPLAY=:0
%env PROGRAM_PATH=/root/scripts/aikit/lecture

  • Check the contents of the Python file to be executed.

!cat $PROGRAM_PATH/01_09_distance_measurement_metric.py

  • Check the contents of the Python file to be executed.

!cat $PROGRAM_PATH/01_09_distance_measurement_metric.py

  • Excute the Python file.

!python3 $PROGRAM_PATH/01_09_distance_measurement_metric.py

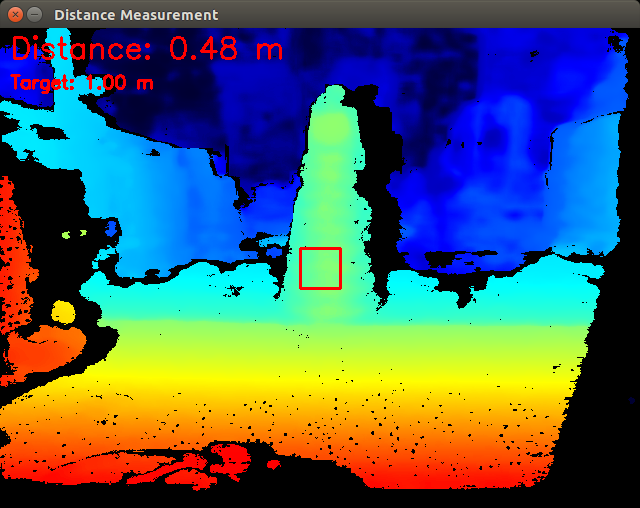

  • If executed correctly, the following window will appear on the Jetson Nano’s display.

Python File Description

import pyrealsense2 as rs
import cv2
import numpy as np

  • Importing Libraries: This section imports the necessary Python libraries:

    • pyrealsense2 as rs: This library provides access to the RealSense camera’s functionality. It allows you to capture depth frames and configure the camera.

    • cv2: This is the OpenCV library, which is used for various computer vision tasks, including image manipulation and display.

    • numpy as np: NumPy is a library for numerical operations in Python, often used for working with arrays and matrices.

# Initialize the RealSense pipeline
pipeline = rs.pipeline()
config = rs.config()
config.enable_stream(rs.stream.depth, 640, 480, rs.format.z16, 30)
pipeline.start(config)

  • Initializing RealSense: In this part, the RealSense camera is initialized:

    • pipeline = rs.pipeline(): This creates a pipeline object, which manages the flow of data from the RealSense camera to your application.

    • config = rs.config(): A configuration object is created to set up the camera’s parameters.

    • config.enable_stream(rs.stream.depth, 640, 480, rs.format.z16, 30): This configures the pipeline to enable the depth stream with specific settings:

    • rs.stream.depth: Specifies that you want to capture the depth stream.

    • 640, 480: Sets the resolution of the depth stream to 640x480 pixels.

    • rs.format.z16: The format for the depth values (16-bit).

    • 30: The frame rate is set to 30 frames per second.

# Define the target distance in meters
TARGET_DISTANCE = 1.0

- Defining Target Distance: Here, a constant TARGET_DISTANCE is defined to represent the desired target distance in meters. This will be used for comparison with the actual measured distance.

# Loop to continuously measure and display the distance
while True:
    # Wait for frames from the RealSense camera
    frames = pipeline.wait_for_frames()
    depth_frame = frames.get_depth_frame()

  • Continuous Loop: This code sets up an infinite loop that continuously measures and displays the distance:

    • pipeline.wait_for_frames(): This function waits for a set of frames to become available from the RealSense camera. These frames typically include depth data.

    • frames.get_depth_frame(): It extracts the depth frame from the set of frames. The depth frame contains information about the distances to objects in the camera’s view.

if depth_frame:
    # Measure the distance at the specified pixel
    CENTER_X, CENTER_Y = 320, 240
    distance = depth_frame.get_distance(CENTER_X, CENTER_Y)

  • Measuring Distance: If a valid depth frame is available, the code proceeds to measure the distance at a specified pixel location:

    • CENTER_X, CENTER_Y: These constants define the pixel coordinates where the distance will be measured, in this case, the center of the image.

    • depth_frame.get_distance(CENTER_X, CENTER_Y): This function retrieves the depth value (distance) in meters at the specified pixel coordinates (CENTER_X, CENTER_Y) in the depth frame. The result is stored in the distance variable.

# Create a colorizer to map depth values to colors
colorizer = rs.colorizer()
colorized_depth = np.asanyarray(colorizer.colorize(depth_frame).get_data())

  • Colorizing Depth Data: In this section, a colorizer is used to map the raw depth values in the depth frame to colors:

    • rs.colorizer(): A colorizer object is created to perform the colorization.

    • colorizer.colorize(depth_frame): The colorize method takes the depth frame as input and returns a colorized depth frame. In this frame, depth values are represented as colors, typically with closer objects appearing in warmer colors (e.g., red) and farther objects in cooler colors (e.g., blue).

    • np.asanyarray(…) is used to convert the colorized depth frame into a NumPy array for easier manipulation.

# Flip the colorized depth image horizontally
colorized_depth_flipped = cv2.flip(colorized_depth, 1)

  • Horizontal Flipping: The colorized depth image is horizontally flipped using OpenCV. This step is often performed for visualization purposes, ensuring that the image’s orientation matches the real-world camera view.

# Draw a red rectangle around the specified location
rect_size = 20
cv2.rectangle(colorized_depth_flipped, (CENTER_X - rect_size, CENTER_Y - rect_size),
              (CENTER_X + rect_size, CENTER_Y + rect_size), (0, 0, 255), 2)

  • Drawing Rectangle: A red rectangle is drawn around the specified pixel location (CENTER_X, CENTER_Y). This is done using OpenCV’s cv2.rectangle function. The rectangle’s size is determined by rect_size, and the color is specified as (0, 0, 255) (red). The 2 indicates the thickness of the rectangle’s border.

# Display the distance measurement compared to the target distance
distance_text = f"Distance: {distance:.2f} m"
target_text = f"Target: {TARGET_DISTANCE:.2f} m"
cv2.putText(colorized_depth_flipped, distance_text, (10, 30), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 0, 255), 2)
cv2.putText(colorized_depth_flipped, target_text, (10, 60), cv2.FONT_HERSHEY_SIMPLEX, 0.6, (0, 0, 255), 2)

  • Adding Text: Textual information is added to the colorized depth image:

    • distance_text: This variable is created to display the actual measured distance with two decimal places.

    • target_text: Another variable displays the target distance with two decimal places.

    • cv2.putText(…): OpenCV’s putText function is used to overlay the text on the colorized depth image. It includes the text content, position, font type, font scale, color, and thickness.

# Display the colorized depth image with flipped data
cv2.imshow("Distance Measurement", colorized_depth_flipped)

  • Displaying the Image: The colorized depth image, which now includes the rectangle and text, is displayed in an OpenCV window titled “Distance Measurement” using cv2.imshow().

# Break the loop when 'q' key is pressed
if cv2.waitKey(1) & 0xFF == ord('q'):
    break

  • Loop Termination: The program checks if the ‘q’ key is pressed within the OpenCV window. If the ‘q’ key is pressed, the loop is terminated, and the program will exit.

# Stop the RealSense pipeline and close the OpenCV windows
pipeline.stop()
cv2.destroyAllWindows()

  • Cleanup: After exiting the loop, the RealSense pipeline is stopped using pipeline.stop(), which releases the camera and associated resources. cv2.destroyAllWindows() closes any open OpenCV windows, ensuring a clean shutdown of the program.

Let’s Start the Mission

  • Misson : Goal: Let’s measure the distance of an object using the distance detecting function.

  • In this mission, the goal is to measure the distance of an object using the distance detecting function provided in the code.

  • The purpose of this mission is to demonstrate how to use the distance measuring capabilities of a RealSense depth camera to determine the distance to a specific object.

  • Mission Steps:

    • Step 1: Initialization and Configuration

      • Begin by initializing the RealSense pipeline and configuring the depth stream settings. This step is already provided in the code, so no additional action is needed here.

    • Step 2: Define the Target Distance

      • You will define the target distance that you want to measure. The code already includes a constant for this purpose:

      TARGET_DISTANCE = 1.0  # Set the desired target distance in meters

      • Adjust the value of TARGET_DISTANCE to represent the specific distance you want to measure to the object.

    • Step 3: Continuous Distance Measurement

      • The code includes a continuous loop that measures and displays the distance to a specified point (typically the center of the image) in real-time. This part of the code already performs the distance measurement using the RealSense depth data.

    • Step 4: Visualization

      • The code visualizes the distance measurement by displaying a colorized depth image with a rectangle around the measurement point and text indicating the actual measured distance compared to the target distance.

    • Step 5: Cleanup

      • After exiting the loop, the code ensures proper cleanup by stopping the RealSense pipeline and closing any open OpenCV windows.

  • Your mission is to follow these steps and execute the code to measure the distance of an object using the provided distance detecting function. Adjust the TARGET_DISTANCE value to set the desired target distance, and observe how the code continuously displays the measured distance compared to the target distance in real-time. This mission will demonstrate how to use the RealSense depth camera for precise distance measurements, which can be valuable in various applications.
